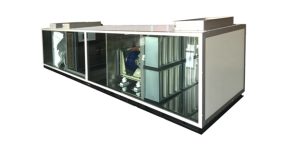

Digital variable-capacity DX AHU features powerful output management and excellent cooling under low temperature, and is widely applied in multiple industries. With a maximum cooling capacity of 282kW, it is applicable to scenarios related to operating rooms, quarantine centers, medical laboratories, precision instrument manufacturing, biosafety laboratories, pharmaceuticals, food processing, and lithium batteries. For places with high power consumption, such as pharmaceutical factories, the digital condensation heat recovery feature can be used to optimize the air-side system for energy efficient operation.
Large cooling capacity of single unit, large fluctuation of fresh air volume, operation with variable air flow, precise dehumidification even under low load conditions.
Mechanical variable-capacity, no electromagnetic interference generated by variable-capacity inverter.
Smart control over all fresh air and operating room grade management of temperature and humidity through TICA technology.
Condensation heat recovery is optional to avoid waste of heat. R410A refrigerant does not contribute to ozone depletion and is unlikely to be phased out.
The unit is pre-charged with refrigerant upon delivery. The pipeline is simple and easy to be installed.
The optional condensation heat recovery system can recover heat to reheat the air. In this way, the electric heater does not need to operate, and thus less
energy is consumed.
Winner of innovation award from ARI: Emerson digital variable-capacity compressor.
The compressor controls the movement of its scroll within a very narrow range via control of the action and time PWM valve, and changes the rise and
engagement of the fixed scroll to regulate the cycle time of “load” and “unload” and therefore to implement varying capacity and control of the capacity output
(continuously adjustable in the range of 10-100%).
Reliable system without electromagnetic interference.
The control logics are based on mature experience and comply with relevant national standards. The eco humidity priority control mode can be used.
Professional controller connector, intuitive and dynamic display of unit parameters, and complete alarm and protection design.
The control cabinet is equipped with multiple protection technologies, such as power supply misphase, power supply phase loss, and current overload, to ensure that the unit operates stably. In addition, the unit reserves diversified external interlocking. Integrated control can save energy of the chiller, while ensuring comfortable room temperature.
Cutting-Edge Digital Variable-Capacity Technology for Precision RegulationThe mechanically variable-capacity compressor supports stepless regulation and can achieve precise control over cooling capacity (10%-100%) despite of large
fluctuation of fresh air flow. Energy waste caused by fixed speed compressor under partial load due to excessive cooling is prevented.
Patented Frameless CaseNo cold bridge, no condensation, no leakage, energy efficiency.

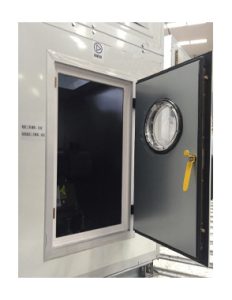

Patent Access Door Designed Using Aviation TechnologiesDouble knife edge sealing, pressure test passed; no leakage.

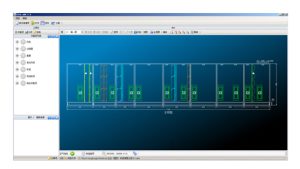

Professional Model Selection SoftwareSelf-developed model selection software, with embedded parameters and precise logics; intelligent recommendation of highly efficient energy-saving solutions; customization supported; fast export of complete set of reports; guaranteed delivery.
